Application Areas
- Municipal roads, residential pavements, factory floors, bridges, docks, and other concrete surfaces
- Parking lots, plazas, water conservancy tunnels, and heavy-traffic areas
- Decorative color repairs (HL39S recommended)
- Applicable for repairing surface defects such as dusting, freeze-thaw damage, surface pitting, honeycombing, aggregate exposure, and flaking.
Key Features
- High Strength and Abrasion Resistance: Compressive strength reaches ≥ C35 after 28 days, suitable for heavy-load areas.
- Fast Traffic Opening: Early-strength formulation; compressive strength reaches ≥ C25 within 1 day.
- Water Resistance and Waterproofing: Micro-expansion during curing improves joint filling, overall compactness, and water resistance.
- Strong Adhesion: Can be applied directly on damp substrates; excellent bonding with low risk of delamination.
- Aesthetic Repairs (HL39S): Colored version is suitable for decorative repairs in plazas and landscape flooring.
- Fiber-Free: Free of fibers for smoother surface finish and easier application.
Instructions for Use
Construction Process
- Surface Preparation: Ensure the substrate is clean and free from oil, loose debris, or contaminants. The surface should be either clean or slightly damp, with no standing water.
- Mixing: Add the required amount of clean water according to the recommended ratio. Mix thoroughly using an electric mixer until a smooth, lump-free paste is formed.

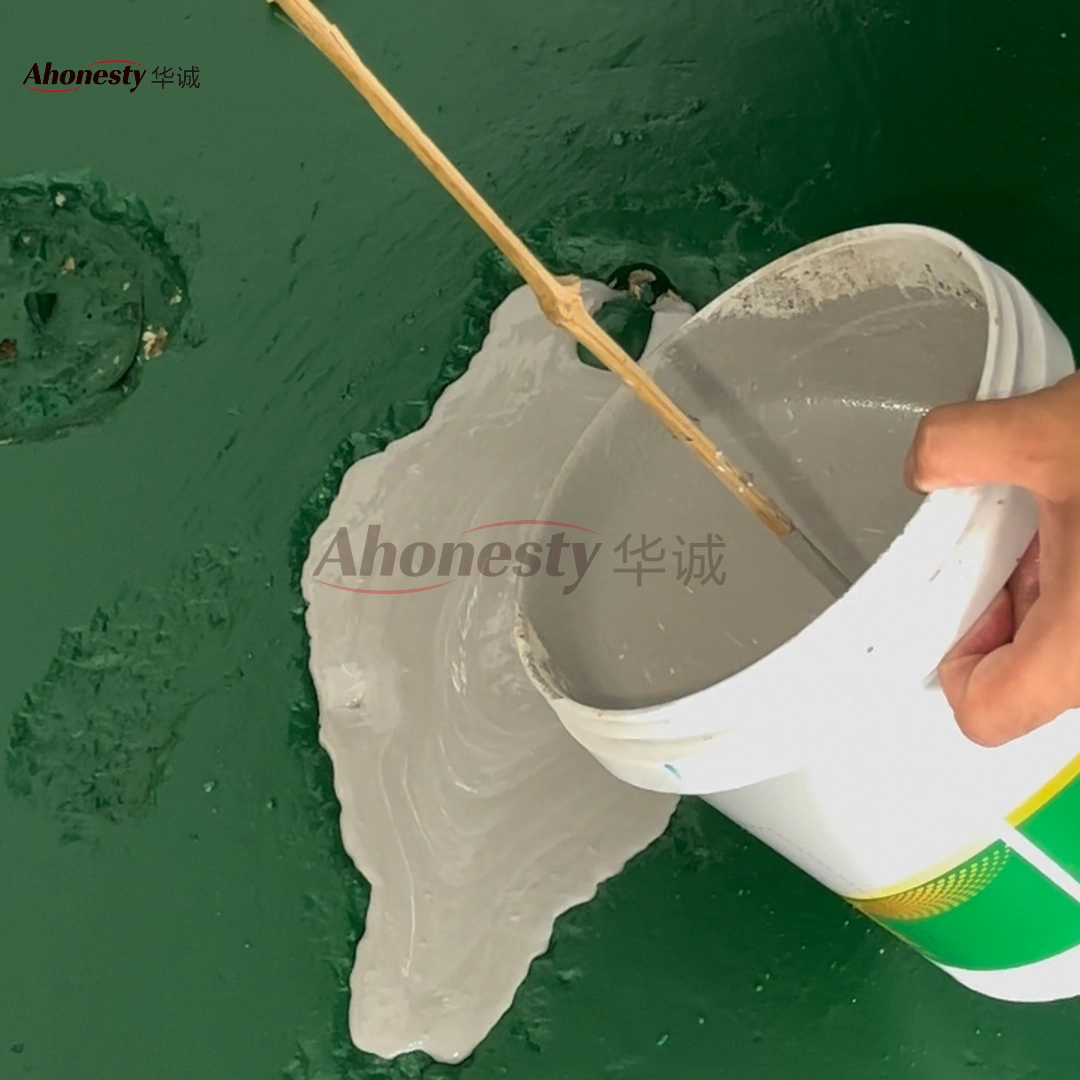

- Application: Pour the mixed mortar into the repair area and use a trowel to level and compact the surface.
- Curing: During the curing process, avoid water exposure and ensure the surface remains moist until fully cured. Protect the repair area from traffic and rain.
Precautions
- The mixed material should be used promptly to avoid premature crosslinking caused by prolonged idle time.
- Do not introduce contaminants such as gasoline, thinners, vinegar, sugar, or other foreign substances into the mixture.
- Recommended application temperature: -5°C to 35°
- In cold weather, preheat water to ~65°C for mixing.
- In hot weather, use cold water to slow the setting rate.
- Recommended thickness: 3–5 mm.
- Typical consumption: 8–10 kg/m².
Storage and Transportation
Packaging Specification: 25 kg/bag
Storage Conditions: 5–35°C, sealed and dry; avoid moisture and direct sunlight
Shelf Life: 12 months (under proper storage conditions)
Transportation Requirements: Non-hazardous; protect from moisture, sunlight, and freezing during transport
Product Comparison
| Product Model | Product Name | Specification | Reference Consumption | Key Features |
|---|---|---|---|---|
| HL39 | Gray Repair Mortar | 25 kg/bag | 8–10 kg/m² | • High compressive strength (≥50MPa) • Fiber-free formulation • Easy trowel application • Fast-setting |
| HL39S | Colored Repair Mortar | 25 kg/bag | 8–10 kg/m² | • Available in multiple colors • UV-resistant pigments • Seamless color matching • Same performance as HL39 |
Performance Parameters
| Parameter | HL39 High-Strength Repair Mortar | HL39S Fast-Setting Colored Repair Mortar |
|---|---|---|
| Component Type | Two-component system (A+B) | Two-component system (A+B) |
| Product Form | Waterborne liquid (A) + Powder (B) | Waterborne liquid (A) + Fast-setting powder (B) |
| Recommended Consumption | 2.2 kg/m²·mm | 2.2 kg/m²·mm |
| Initial Set Time (25°C) | 60 minutes | 30 minutes (50% faster than HL39) |
| Final Set Time (25°C) | 120 minutes | 60 minutes (50% faster than HL39) |
| Application Scope | • Permanent pavement repairs • Industrial floor restoration • Bridge deck rehabilitation • High-load bearing surfaces | • Emergency repairs • Temporary traffic areas • Color-matched patching • Quick turnaround projects |
